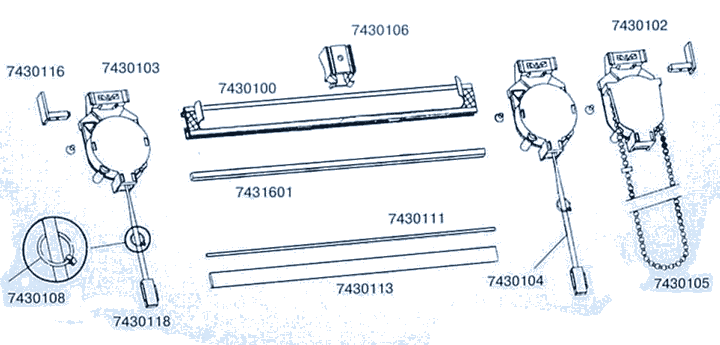

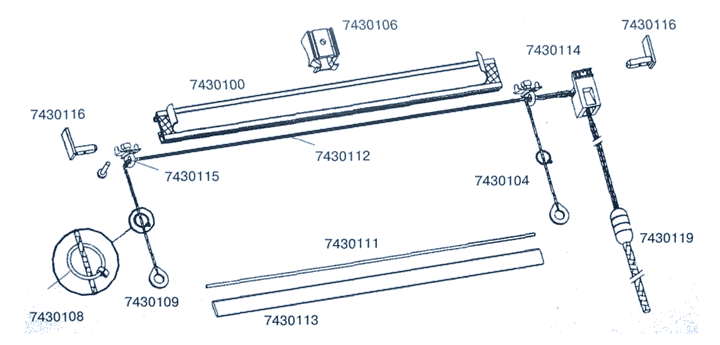

Profile P-43 with rotor-chain lifting mechanism for roman, french and austrian shades.
Aluminium profile P-43. Accessories for roman, french and austrian shades.
Image |
Marking of goods |
Name |
Color |
Unit |
|
743 01 00 |
Profile P-43
Length 6 m. |
white |
m. |
|
743 16 01 |
Movement axis |
silver |
m. |
|
743 01 02 |
Chain control guide |
white |
item |
|
743 01 03 |
Tape drop |
white |
item |
|
743 01 04 |
Loop tape |
white |
m. |
|
743 01 05 |
Chain |
white |
m. |
|
743 01 06 |
Universal bracket |
white |
item |
|
743 01 07 |
Universal bracket 5 cm. |
white |
item |
|
743 01 08 |
Ring |
white |
item |
|
743 01 09 |
End ring |
white |
item |
|
743 01 10 |
Loop tape |
white |
m. |
|
743 01 11 |
Fiberglass rod |
white |
m. |
|
743 01 12 |
Cord 1.4 mm |
white |
m. |
|
743 01 13 |
Counterweight |
white |
m. |
|
743 01 14 |
Cord control guide |
white |
item |
|
743 01 15 |
Roller cord drop |
white |
item |
|
743 01 16 |
End stop |
white |
item |
|
743 01 17 |
Counterweight |
white |
item |
|
743 01 18 |
Tape blocking clip |
white |
item |
|
743 01 19 |
Knot cover bell |
white |
item |
|
743 01 20 |
Textolite insertion |
white |
item |
|
743 01 21 |
Universal fastening lock
4,5 ñì |
white |
item |
|
743 17 08 |
S-ring for P-43 |
transparent |
item |
|
743 01 22 |
Hook for P-43
"Tic-Stac" |
white |
item |
|
743 16 23 |
Filling plate
15 mm |
grey |
item |
|
743 16 24 |
Filling plate
40 mm |
grey |
item |
|
210 01 29 |
Tape "French"
factor of assembly: free
1 cord, width 16 mm |
white |
m. |
|
210 01 30 |
Tape "Austrian"
factor of assembly: free
1 cord, width 16 mm
|
white |
m. |
|
210 01 31 |
Tape "Austrian"
factor of assembly: free
2 cords, width 16 mm |
white |
m. |
|
210 01 32 |
Tape "Stor VH", width 16 mm
1 loop, with adhesive coating |
white |
m. |
|
210 01 33 |
Tape "Venetian", 2 cords,
width 16 mm, with adhesive coating, with rings |
white |
m. |
|
210 17 34 |
Tape "Roman" with loops
width 16 mm |
transparent |
m. |
|
210 01 35 |
Tape "Roman" with loops
width 16 mm |
white |
m. |
|
210 01 36 |
Tape "Roman" with loops
width 14 mm |
white |
m. |
